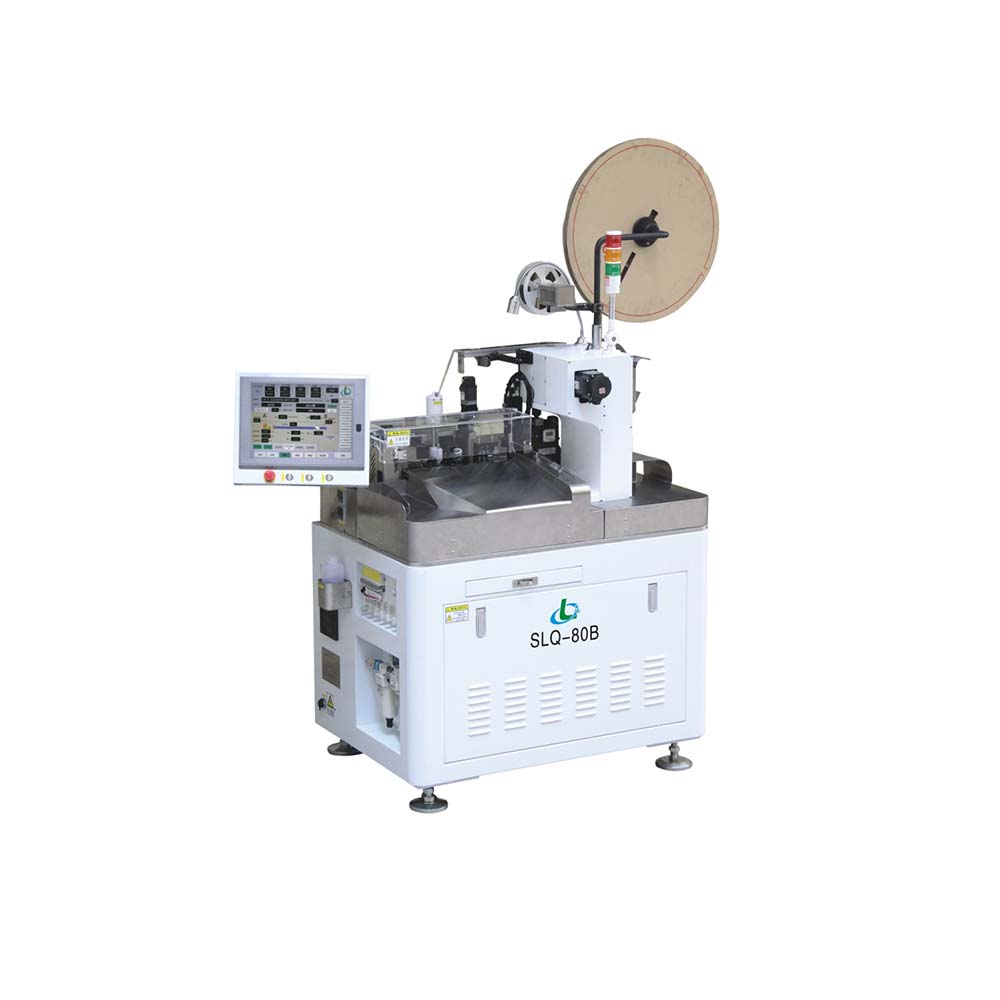

TIGER-80B
Equipment Configuration
With the German high pixel CCD inspection system.
Module (THK), Electric engine (YASKAWA), Pneumatic mould (SMC), Sensor (Omron), CCD Camera (Basler), Reducer (Nidec-Shimpo), PLC (Keyence), Servo drive (Mitsubishi).
The maximum productivity can reach to 2800pcs/hr.
Equipment Function
Wire twisting & tinning module integrated.
Double camera CCD visual inspection.
CFM (Crimping Force Monitoring) sensor integrated with every crimping module.
Scrap selecting & unloading, foolproof scrap cutting unit.
Adjust the crimping height on HMI.
Technical Parameters
| Wire Size | AWG#30-#14 | Cutting Length | 35-9999mm (The shortest cut length can be customized according to specific needs) |
| Power | 3.5KW | Crimping Capacity | 2 TON presser one set mute specifications |
| Power Source | Single-phase 220v/50HZ | Compressed Air Connection | 0.5Mpa |
| Stripping Length | A: 0-15.0mm B: 0-17.0mm | Stripping Depth | Maximum 3mm |
| Weight | About 550KG | Equipment Size | L1450*W950*H1780mm (Extend part not contained) |
| Mould Assembly Type | AS40, AS42, AE30（Pneumatic mould can be customized) | Drive Mode | Mitsubishi servo drive, IPC |
| Cutting Precision | Cutting length*0.02mm | Detection Device | Air pressure declining detection, Wire presence, Wire overload, Terminal presence, Terminal overload, Stripping CCD inspection, Terminal crimping CCD inspection, Crimping force detection(CFM), Liquid tin level detection |
| Capacity | Single-end crimping, single-end tinning about 2800pcs/hr (Depends on different producing process and the functional module quantity, productivity is different) | Function | Pre-feeding, Wire feeding, Fixed-length cutting, Stripping/Half stripping, Single-end terminal crimping, Single-end twisting & tinning, Optional function: seal insertion |
