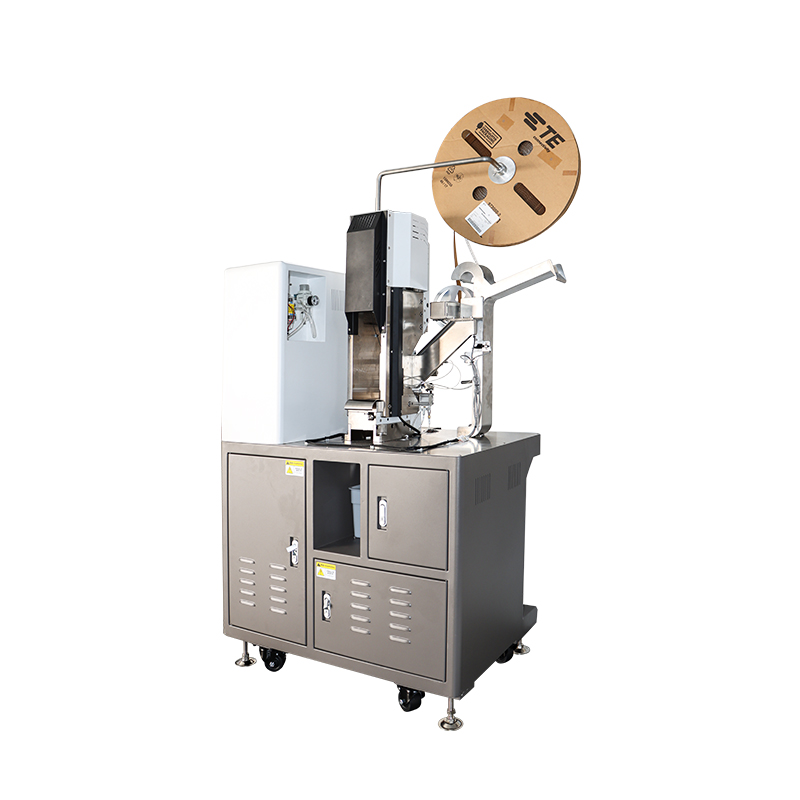

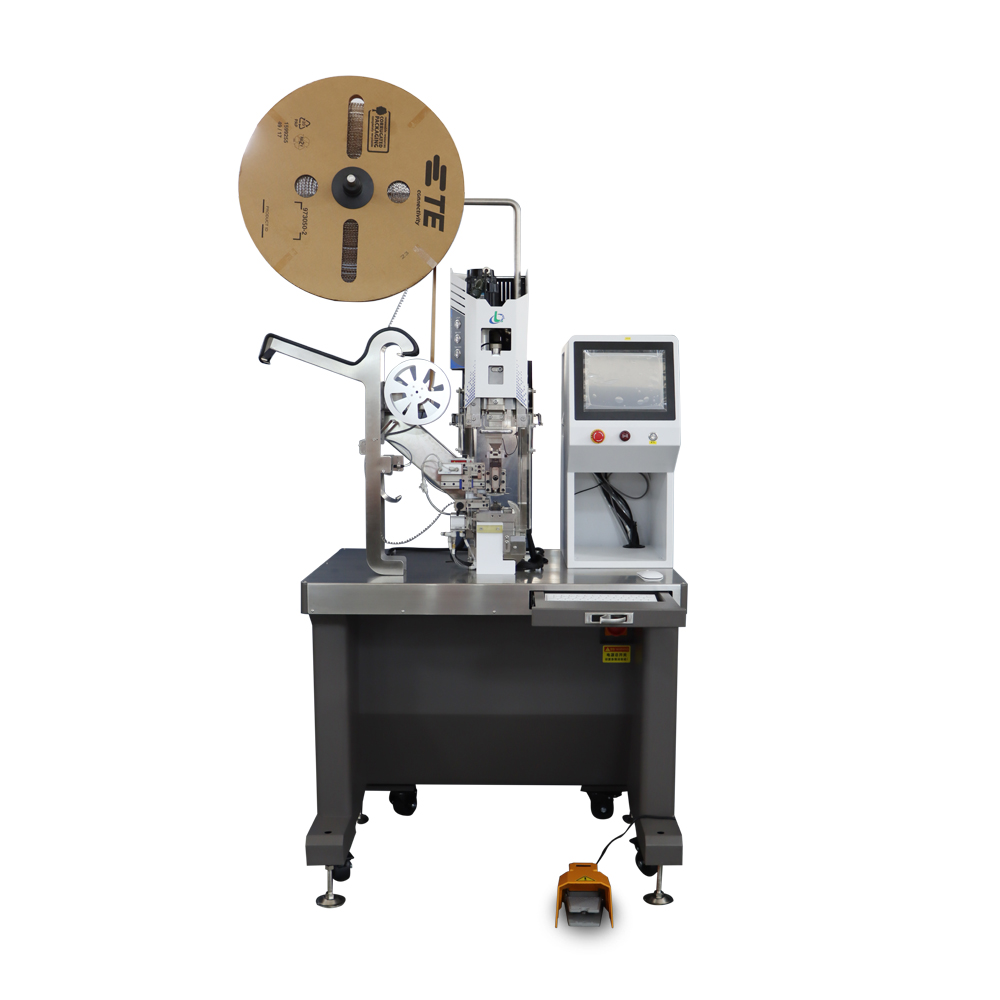

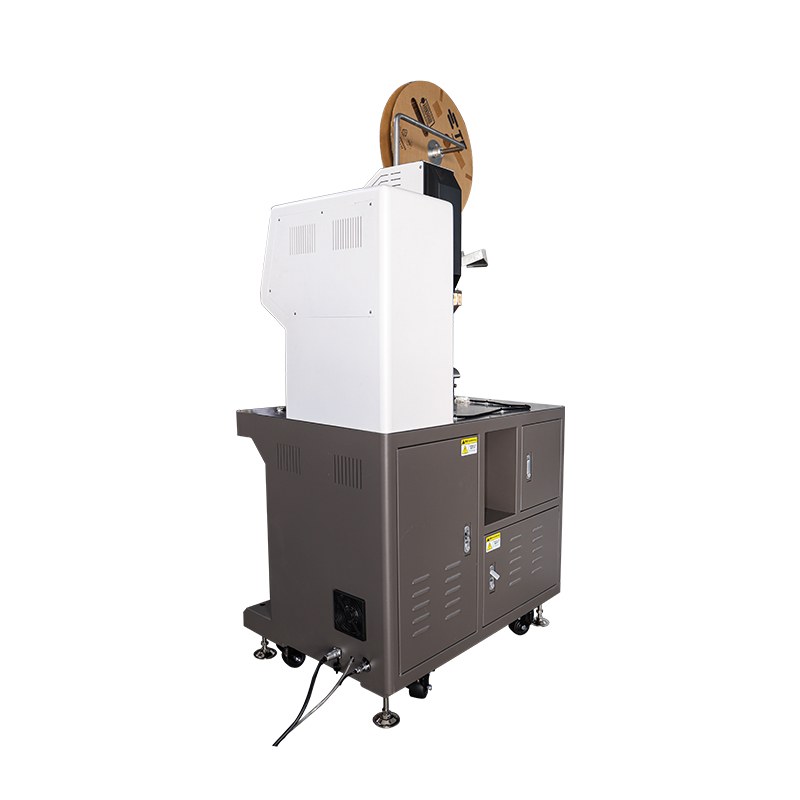

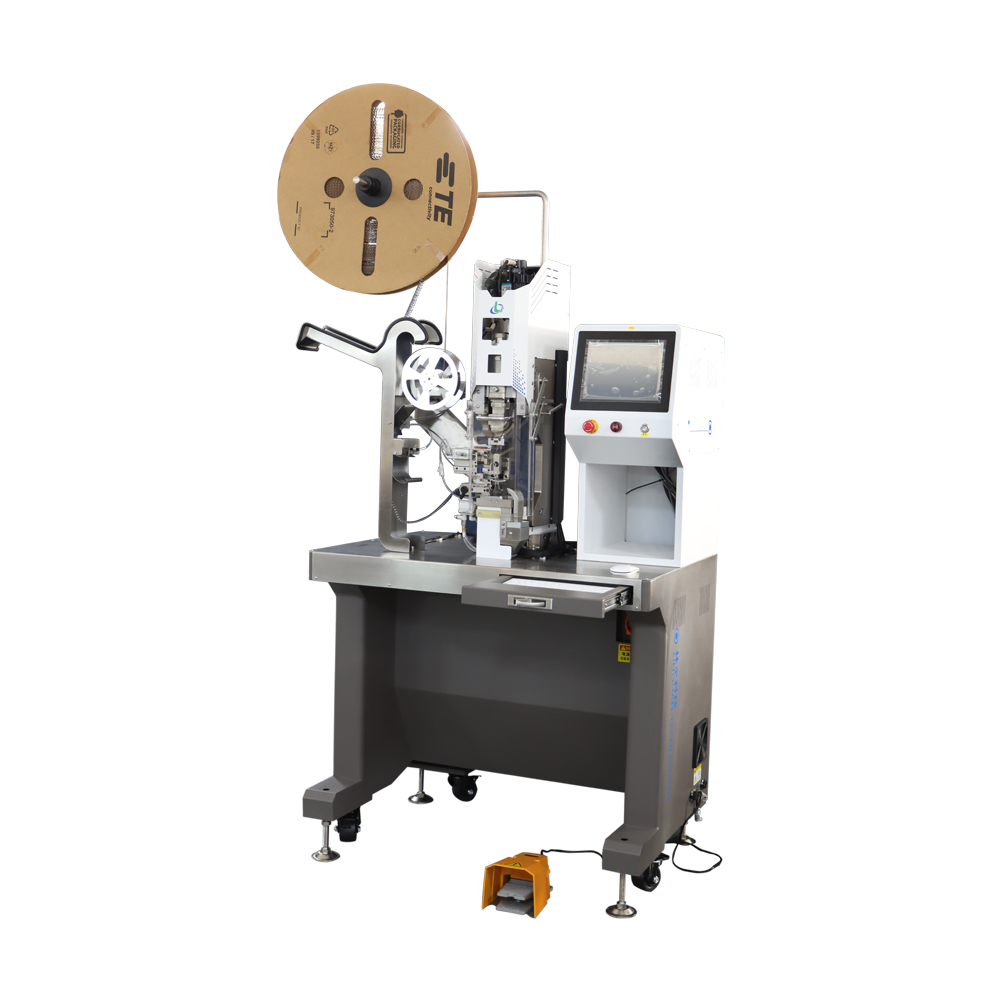

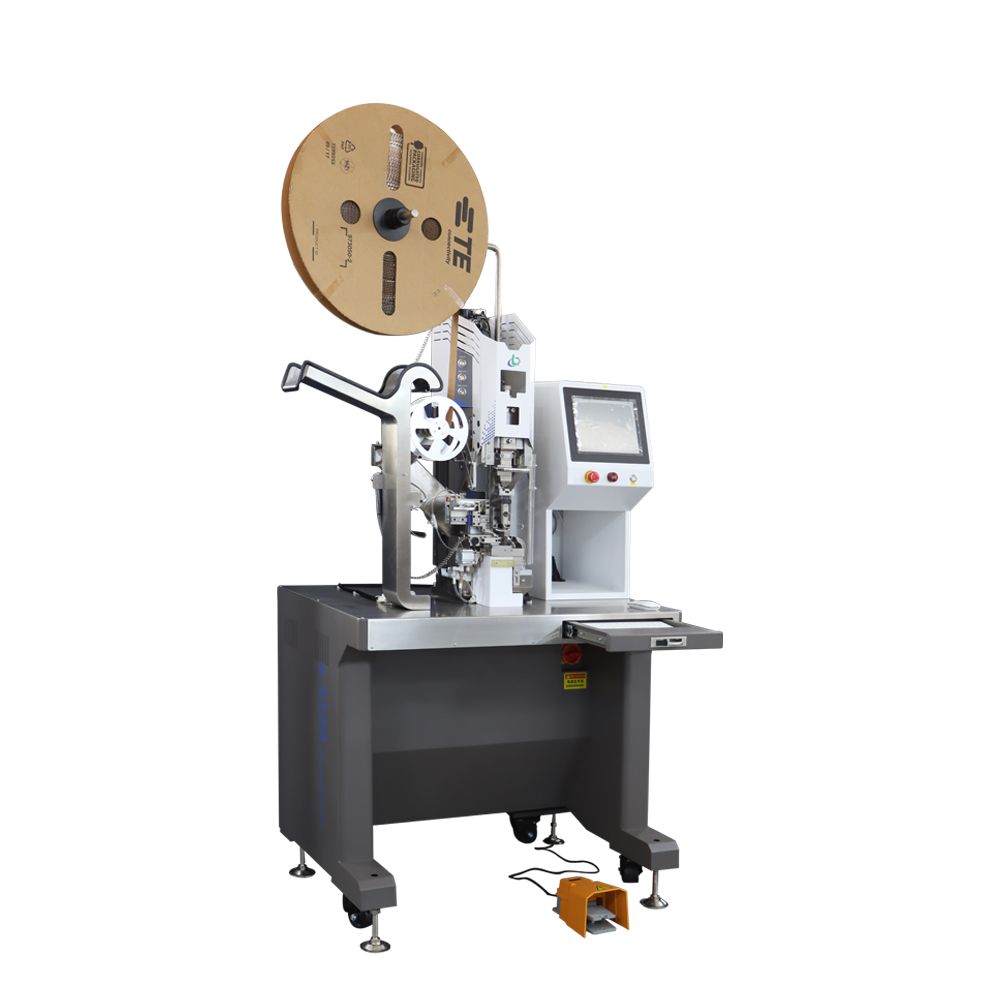

Semi-automatic Crimping Machine
Equipment Configuration
With the German high pixel image detection system.
Industrialrobot(EPSON), Module(THK), Electric(YASKAWA), Cylinder(SMC), Sensor(Omron), CCD Camera(Germany Basler), Reducer(xinbao).
Equipment Function
With both-end crimping function.
Pressure detection at both end.
Adjust the crimping height on touchscreen.
Technical Parameters
| Wire Size | 0.13—4.0mm² | Cutting Length | 60-9999mm |
| Power | 2.5KW | Mould Assembly Type | AS40, AS42, AE30（Pneumatic mould can be customized) |
| Power Source | 220v/50HZ | Compressed Air Connection | 0.5Mpa |
| Drive Mode | Mitsubishi servo drive, IPC | Stripping Depth | Maximum 3mm |
| Weight | 700KG | Equipment Size | L1000*W700*H1960mm |
| Cutting Precision | Cutting length*0.02mm | Crimping Capacity | 2TON presser three sets Mute specifications |
| Function | Both-end crimping |
